terminal boxes

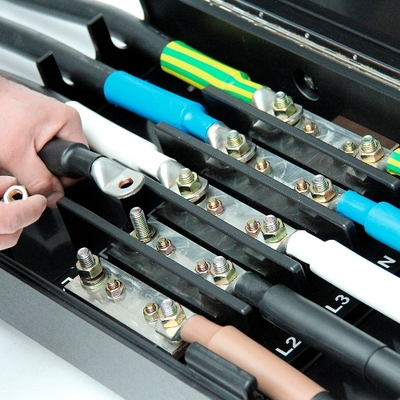

When connecting individual wires in a moblie application, INDU-ELECTRIC terminal boxes are the ideal solution. Their rectangular shape makes them very easy to open. Individual wires fitted with eyelets can be attached to the terminals for a secure connection. The closed lid can also be locked securely.

Input:
- 5x terminals, max. 240mm² M12

Output:
- 5x terminals, max. 240mm² M12 for M12 eyelets

Cable entries with rubber grommets for up to 40mm cable diameter.
Lockable with 2x turnbuckle locks.
3-segment LED display with fine fuse..

item number
11408353
ready for shipping:
May 2024
weight:
15.50 kg
size (LxWxH):
600 x 350 x 160mm

Input:
- 5x terminals, max. 240mm² M12

Output:
- 5x terminals, max. 240mm² M12 for M12 eyelets

Lockable with 2x turnbuckle locks.

item number
11401236
ready for shipping:
May 2024
weight:
14.00 kg
size (LxWxH):
600 x 330 x 130mm

Input:
- 5x terminals, each with two 120mm² M12

Output:
- 5x terminals, each with two 120mm² M12

Extras:
top-hat rail for stain relief, incl. foot

CU 30x10mm max. 600A, with M12 stud
(pin back-to-back)

item number
11601707
ready for shipping:
May 2024
weight:
18.00 kg
size (LxWxH):
500 x 300 x 150mm
